Description

Winston MX 500 — 480W Mixer Amplifier with Bluetooth, USB & FM

The Winston MX 500 is a high-performance 480-watt RMS mixer amplifier built for commercial spaces that demand robust, reliable audio. Supporting both low-impedance (4–16 ohm) and constant-voltage (70V/100V) speaker systems, it adapts to virtually any installation — from a pair of passive speakers in a conference room to a distributed ceiling speaker network across a school or house of worship.

One Amplifier, Two Speaker Architectures

Most amplifiers force you to choose between low-impedance and 100V line systems. The MX 500 handles both. Run 4–16 ohm speakers for full-range sound in smaller rooms, or switch to 70V/100V output for long cable runs and multiple speakers across larger commercial spaces. For installers, that flexibility means one unit covers more project types — and simplifies future changes to the speaker layout.

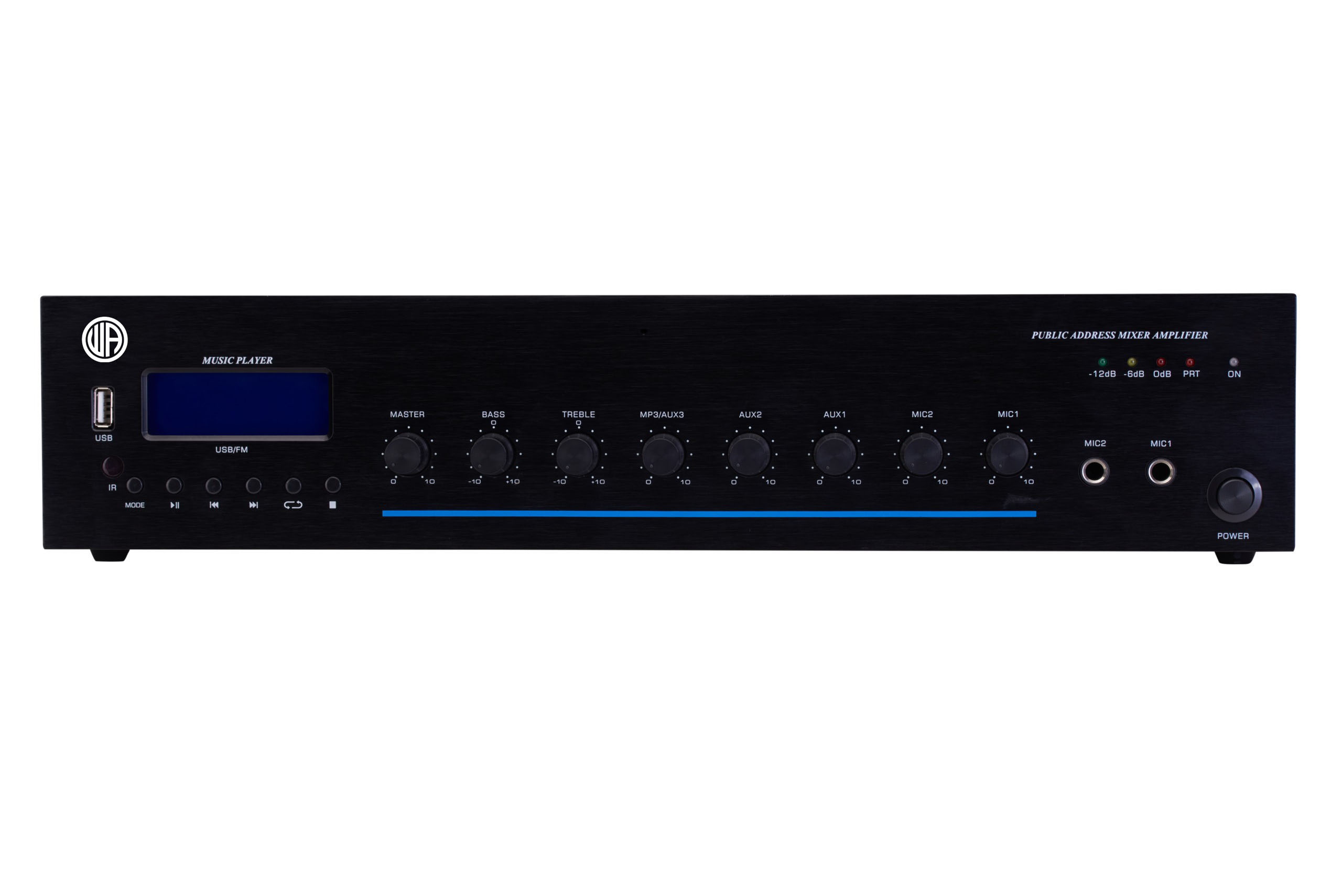

Built-In Media Player with LCD Display

Bluetooth, USB, and FM radio playback come standard, controlled through an integrated LCD display — no external media player required. Three AUX inputs accommodate mixers, streaming devices, or other line-level sources, and every input has its own dedicated volume control for precise level management.

Clear Voice, Clean Music

Two microphone inputs with individual volume controls handle announcements and live presentations, while master, bass, and treble controls let you tune the output to suit the room. Whether it’s background music, paging, or a live event, the MX 500 delivers rich, clean sound at every level.

Installer-Friendly by Design

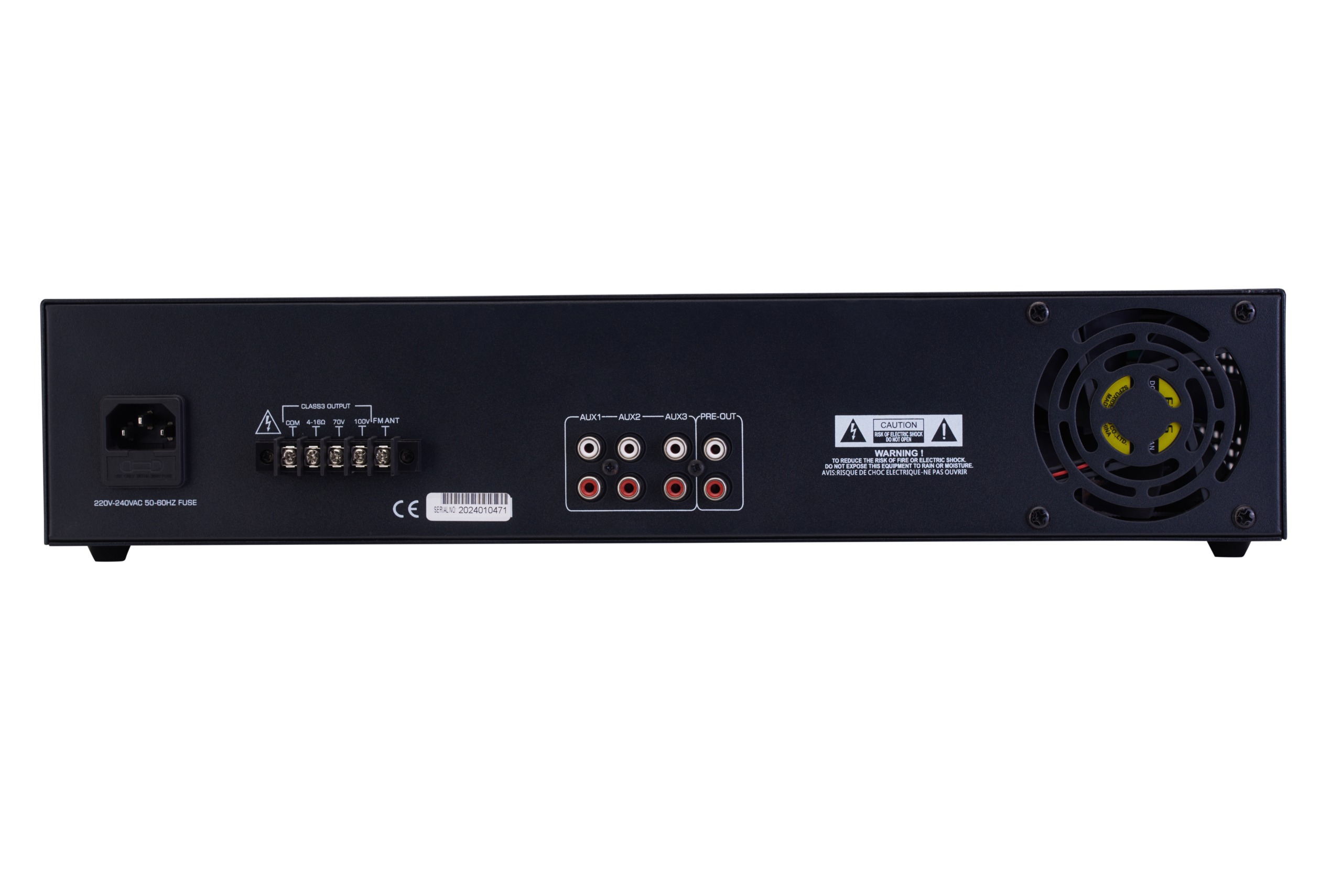

The AUX output supports daisy-chaining additional amplifiers or connecting an active subwoofer as the system grows. Housed in a rugged steel chassis with fan-cooled internal heat sinks, the MX 500 is engineered for continuous commercial operation and straightforward installation.

Key Specifications

Power Output: 480 W RMS Speaker Support: 4–16 ohm low impedance and 70V/100V constant voltage Microphone Inputs: 2, with individual volume controls AUX Inputs / Output: 3 in / 1 out (daisy-chain or subwoofer) Playback: Bluetooth, USB, FM radio with LCD display Tone Controls: Master, bass & treble Cooling: Fan-cooled internal heat sinks Build: Rugged steel chassis

Where the MX 500 Fits

Schools and educational institutions use it for classroom blocks and assembly halls. Offices rely on it for conference rooms and floor-wide background music. Houses of worship pair it with column or ceiling speakers for clear voice reinforcement. Conference halls and event spaces benefit from its headroom for live presentations, and retail or hospitality venues get dependable all-day background music from a single unit.

Frequently Asked Questions

What’s the difference between 4–16 ohm and 70V/100V output? Low-impedance (4–16 ohm) output suits a small number of speakers over short cable runs, typically in a single room. Constant-voltage (70V/100V) output supports many speakers over long cable distances, which is standard for distributed commercial systems. The MX 500 supports both, so it works for either installation type.

How many speakers can I connect? On 70V/100V mode, connect as many speakers as needed provided their combined tapped wattage stays within 480 W. On low-impedance mode, keep the total load within the 4–16 ohm range.

Does it include Bluetooth? Yes. Bluetooth, USB playback, and FM radio are built in, with an LCD display for playback control.

Can I add a subwoofer or a second amplifier later? Yes. The AUX output allows daisy-chaining additional amplifiers or connecting an active subwoofer.

Is the MX 500 suitable for continuous daily use? Yes. The steel chassis and fan-cooled heat sinks are designed for extended commercial operation.

Ready to specify the MX 500 for your project?

Talk to our team for pricing, speaker pairing recommendations, and system planning support.
