Description
Intro
The Winston MX 360 is a professional 360-watt RMS mixer amplifier engineered for multi-zone background music and announcement systems. With six independent 100V zone outputs, stepped volume control per zone, and built-in Bluetooth, USB, and FM playback, it delivers precise audio distribution for offices, restaurants, gyms, retail spaces, places of worship, and educational institutions — from a single 2U unit.
Built for Multi-Zone Commercial Audio

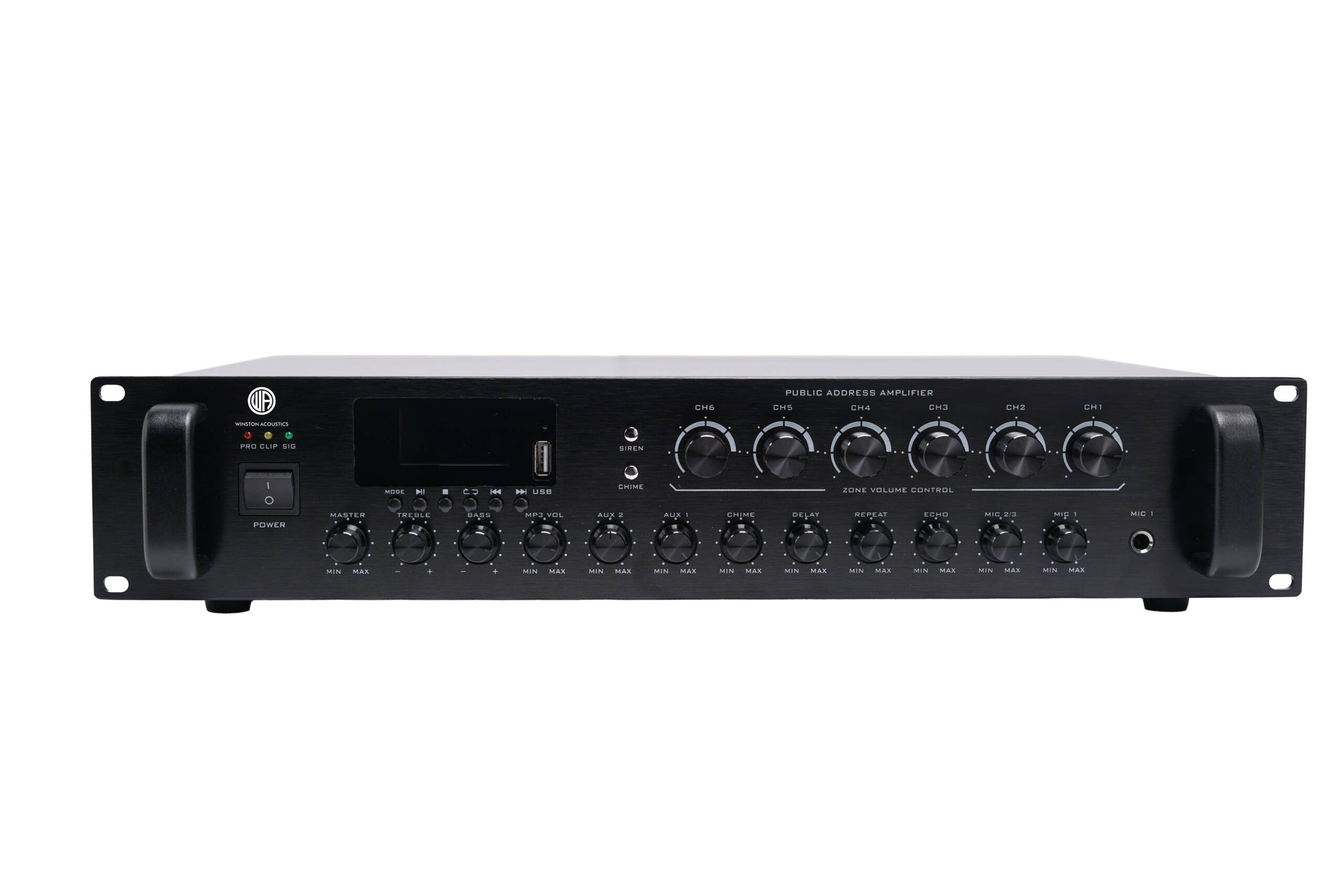

Managing audio across six areas shouldn’t require six amplifiers. The MX 360’s 6-zone output with independent stepped volume control lets you run background music in the dining area, announcements in the lobby, and silence in the meeting room — all from one panel. The 100V line architecture supports long cable runs and multiple speakers per zone, making it the practical choice for distributed commercial installations.
Announcement-Ready by Design
- 3 microphone inputs, Mic 1 with priority override — announcements automatically duck background music, with built-in mute for clean paging.
- Chime and siren functions — attention tones for public address and emergency evacuation alerts.
- Echo, repeat, and delay controls — tune vocal clarity for live announcements in acoustically challenging spaces.
Modern Playback Sources, Zero Add-Ons

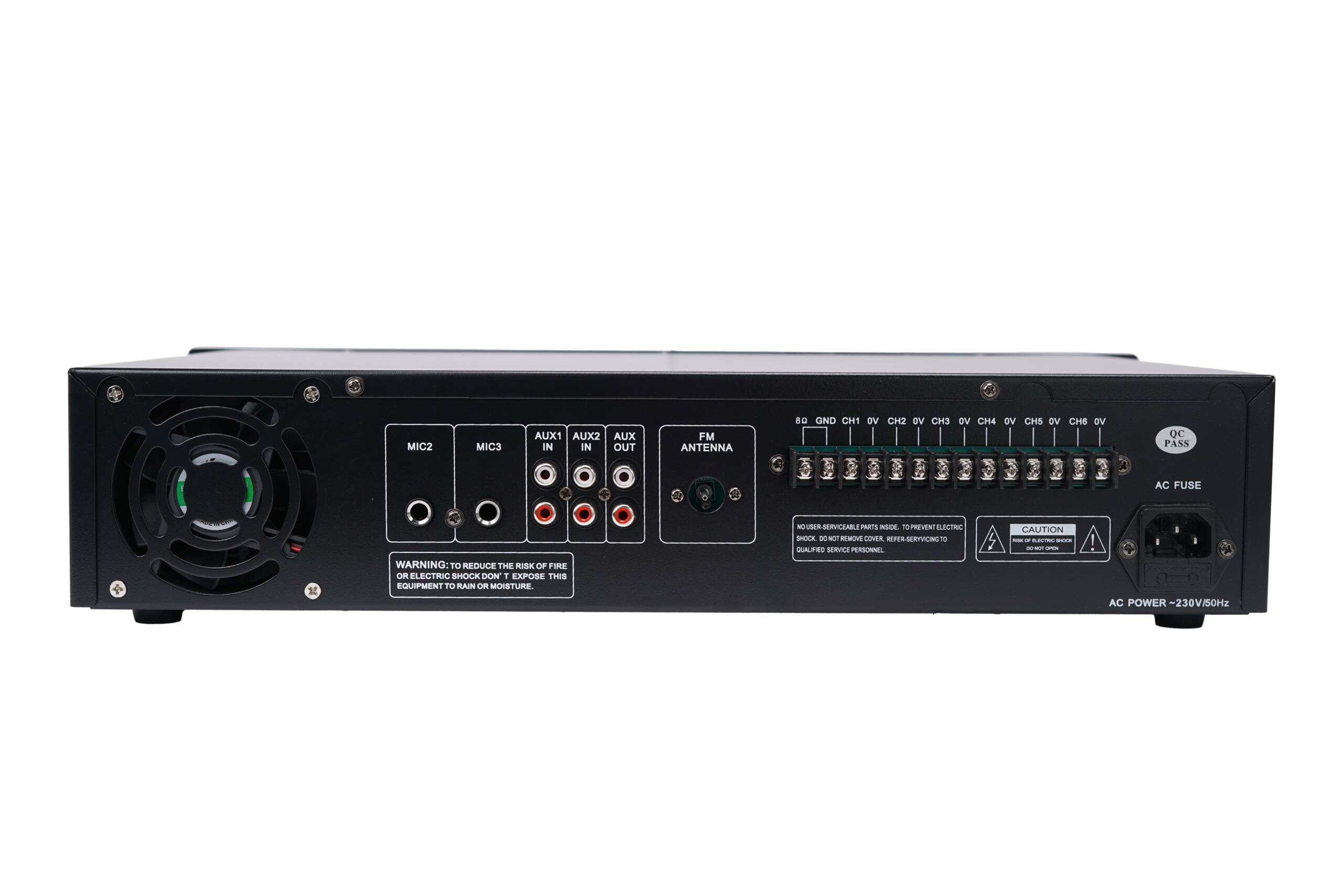

Built-in Bluetooth, USB, and FM radio eliminate the need for external media players. Two AUX inputs accommodate mixers, streaming devices, or legacy sources, while the AUX output supports daisy-chaining additional amplifiers or an active subwoofer as your installation grows.
Engineered to Last
Toroidal transformers deliver clean, stable power with low noise and enhanced reliability under continuous commercial use. The brushed anodized aluminium front panel and solid aluminium knobs are built for daily operation — and look at home in premium interiors.
Key Specifications
| Feature | Detail |
|---|---|
| Power Output | 360 W RMS |
| Zone Outputs | 6 zones, 100V line, stepped volume control per zone |
| Microphone Inputs | 3 (Mic 1 with priority override & mute) |
| AUX Inputs / Output | 2 in / 1 out (daisy-chain or subwoofer) |
| Playback | Bluetooth, USB, FM radio |
| Tone Controls | Active bass & treble |
| Voice Features | Echo, repeat, delay; chime & siren |
| Power Supply | Toroidal transformer |
| Build | Brushed anodized aluminium panel, aluminium knobs |
Where the MX 360 Fits
- Restaurants & cafés — zoned background music with instant paging override.
- Offices & co-working spaces — announcements and ambient audio across floors.
- Gyms & fitness studios — high-energy music in workout zones, softer levels in reception.
- Places of worship — clear voice reinforcement with music playback.
- Schools & institutions — campus-wide PA with emergency siren capability.
- Retail & showrooms — consistent brand audio across departments.
Frequently Asked Questions
How many speakers can I connect to the MX 360? The MX 360 uses 100V line outputs, so the number of speakers per zone depends on their combined wattage — keep the total tapped load within 360 W across all zones. This architecture supports long cable runs and multiple ceiling or wall speakers per zone.
Can announcements override the music automatically? Yes. Mic 1 has priority override: when used, it automatically attenuates music across zones so announcements are heard clearly.
Does the MX 360 support Bluetooth streaming? Yes. Bluetooth, USB playback, and FM radio are built in — no external media player required.
Can I expand the system later? Yes. The AUX output allows daisy-chaining to additional amplifiers or connecting an active subwoofer.
Is the MX 360 suitable for emergency announcements? It includes chime and siren functions for alerts and evacuation announcements. For certified emergency voice alarm compliance, consult your installer regarding local regulations.
Ready to specify the MX 360 for your project? Talk to our team for pricing, zone planning assistance, and speaker pairing recommendations.
